Screen Printing Machine for Garment Label Ribbon

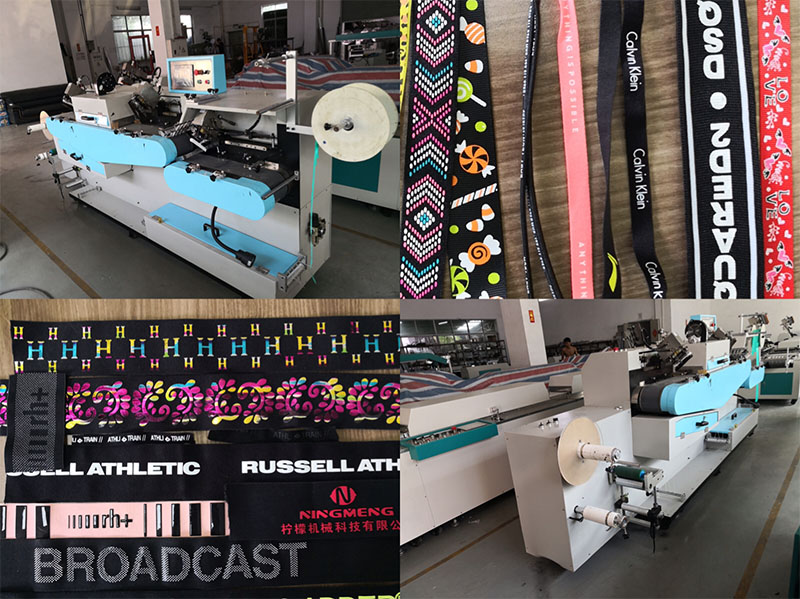

Compact Small Garments Label Ribbon Screen Printer with Metal Belt

Features:
1.servo drawstring device
2.PLC control system
3.Touch screen interface
4. High temperature dryers design, max temperature can reach up to 260-300 centigrades
5. Free setting of blade printing times
6.Silicone-controlled carbon fiber heating system make sure the temperature tolerance controlled in +_2 centigrades.

Brands quality, attractive price. Small investment, it brings you another new profitable markets.
Contact us now for details if any interesting or demand.

File Name : Format: Size:

Description Send Inquiry Now

Machine Basic Information:

1.This machine using servo and PLC control system and metal convey belt to make sure higher color fastness.Dryers build in import IR tubes, max temperature can reach up to 260-300 centigrades.
2.Printing area:13*28cm.This printer can work on pomp ink and plastisol inks,etc special inks.
3.Power :380V/9KW/3P/50-60HZ,much more power saving while printing.
4.Machine dimension:3.8M(L)*0.85M(W)*1.6M(H) 2+1
5.Printing speed:1-10M/line/minute, 1-23 times/min for single color printing.

Application to: textiles tapes, garment labels, ribbons, elastic tapes, cotton/twill tapes, elastic tapes, shoelace,etc.It is the best choice of sampling, small and medium printing orders

Machine types for choosing: 2+1,3+0 and 3+1
2+1: 2 colors in front, back side 1 color
3+0: 3 colors in front, no back side color
3+1: 3 colors in front, back side 1 color
